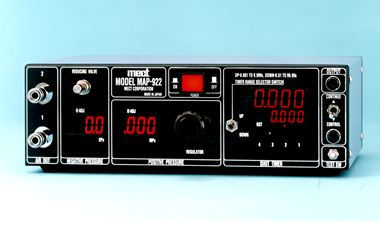

| MAP-922 Dispensers
(Dosing devices) |
| Quick-Response
MAP Dispenser |
High grade Air
pressure type dispenser.
Set up numerical values of timer, pressure gauge and negative
pressure gauge accurately all in digital
Mect's microdispenser MAP-922 dispenses liquids
that bond components, including electric, electronic, and precision
ones. It has many sophisticated features. With a built-in digital
pressure gaue, digital vacuum gauge and digital timer, this
dispenser supplies liquids at constant amounts with high precision.
This dispenser can be used with various materials, such as pastes
(solder cream, gold, silver and copper pastes and various other
conductive pastes), resinous abhesives (epoxy, rubber, urethane
and silicon-baseed), anaerobic bonds, UV bonds, and grease.
This unit can dispense these materials at predetermined rates
with enhanced precision. With an optional high-precision digital
pressure gauge of a resolution of 0.0001MPa, this dispenser
can dispense low-viscosity liquids of 100 cps or less without
using valves.
>> Features a response time as
short as 4/1000 sec.
>> Useful worldwide, with a wide input power voltage range of
AC100-240
V.
>> Can be used with a wide viscosity of liquids ranging from
less
than
100 cps to very high levels. |
|
Features:
|
1.
|
A digital pressure
gauge, digital vacuum gauge and digital timer. |
|
2.
|
A vacuum mechanism prevents
liquid from trickling, stopping,
the liquid flow completely after each dispensing action. |
|
3.
|
The digital
pressure gauge in 0.001MPa stages. |
|
4.
|
The digital
vacuum gauge allows adjustment at 0.1KPa stages. |
|
5.
|
The digital
timer can be set at 0.001 sec stages. |
|
6.
|
The dispensing rate can
be set to a minimum of 0.0001 cc per
one drop or higher at the user's option. |
|
7.
|
Simultaneous
dispensing at two points is available. |
|
8.
|
Switches between
intermittent mode or continuous mode. |
|
9.
|
Can be integrated
into an automated system easily. |
|
10.
|
With a wide
input power range of AC 100 V to 240 V,
the dispenser can be used worldwide. |
|
| Specifications
|
| Power supply |
AC100V~240V 50/60KHz |
| Power consumption |
5W |
| Air pressure |
Max 0.9MPa, non-lubricated
dry air |
| Pressure gauge |
Digital display; pressure
control range 0.005~0.55MPa |
| Dispensing timer |
Four-digit digital
timer,0.001~99.99sec |
| Air outlet
|
2ports |
| Operation
mode |
Timer-operated mode
(constant-rate dispensing) or
steady mode (continuousdspensing) |
| Input signal |
No-voltage, no-contact |
| Dispensing completion
signal |
Open collector, max.
24 V, 50 mA |
| Vacuum mechanism |
Built-in, digital vacuum
gauge,0~-92KPa |
| Applicable viscosity |
0~500,000mPa·s |
| Operating temperature
range |
+5°C~+40°C |
| Outside dimensions |
w225×D130×H70mm (chassis)
|
| Weight |
1.9kg |
|
|
* These specifications are
subject to change without prior notice.
|
|
|
|
