MECT CORPORATION<Dispensers & Dosing
devices> |

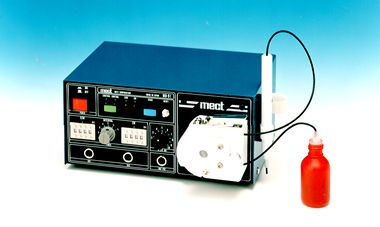

MD-91 Dispensers (Dosing
devices) |
|
Due to a special mechanism
that Mect has developed, The MD-91 can dispense an extremely
small amount of fluid intermittently or continuously.
It can handle a variety or liquids, such as instant adhesives
(instant glues =cyanoacrylates),magnetic fluid,UV bonds,
anaerobic bonds, fluxes, solvents, oils, inks and paints.
It is the ultimate dispenser.
Mect's microdispensers are widely used in manufacturing
and research.
With a built-in digital timer, the
dispenser can supply extremely small amounts of liquid
with high precision.
A liquid trickling prevention function, instant
vacuuming function, and interval-vacuuming function (patented)
are built in.
A single dispenser can supply liquid at two points.
Additional pumps can be installed. When two pumps
are added, dispensing is available at six points.
Pump heads are removable from the controller. |
|
|
FEATURES:
The rotor and housing can be installed
and removed easily, so that the MD-91 can be repaired and
maintained on site.
Our vacuum mechanism releases dispensing pressure at
the moment when the dispensed amount reaches a specified level,
or in a specified period of time thereafter. Because the dispensed
liquid cannot return, the dispenser can supply a constant
amount of liquid. This also has the advantage of preventing
the hardening that usually, results when using cyano-based
adhesives.
A special mechanism extends the tube's service life.
Tubes can however be replaced easily.
The control has a mechanical contact and an operation
completion signal generator, and can be connected to an automated
system or robot.
The required power source is AC 100-240V
No air source is required. |
SPECIFICATIONS
|
Dispensing
rate |
0.0001
cc/one drop |
Power
supply |
AC 100-240V
50/60Hz |
Output |
6W |
Rotor
speed |
Max. 120
rpm, variable |
Dispense
control time |
0.1-99.99sec |
Interval
control time |
0.1-7.0
sec. |
Vacuum
control time |
0.01-99.99
sec. |
Dispensable
liquid viscosity |
10,000
mPa·s or less. |
Applicable
tubes |
Rotor 357
Teflon Tube
I.D |
Φ0.25 |
×
|
O.D |
Φ0.75 |
|
Φ0.5 |
×
|
|
Φ1.0 |
|
Φ0.6 |
×
|
|
Φ1.1 |
|
Rotor 347
Teflon Tube
I.D |
Φ1.0 |
×
|
O.D |
Φ1.6 |
|
Φ1.4 |
×
|
|
Φ2.0 |
|
Φ1.9 |
×
|
|
Φ2.5 |
|
Φ2.4 |
×
|
|
Φ3.0 |
|
Overall |
W189×D129×H95 |
Weight |
2.3kg |
|
|
|
|
